PARTS CATALOG

HK0003578

MHT5073K

AIR SPRING PEDESTAL KIT HENDRICKSON TRAI • "BOLT-ON CAST PEDESTAL LH-RH • AANT TOP MOUNT; ULTRAAX-K; HKANT-40K; 46K; 69K23; 69K25; ULTRAAX-SP • 15.0IN RD. HGT. • 3.17IN HGT. • CONSISTS OF, 1-MHT5073L, 1-MHT5073R, 6-MFB380114C, 6-FLNC100"

HK0002785

MHSK7347

PIVOT BOLT KIT HENDRICKSON • HT250U-YB, HT250U-YS, HT300U-YB , QUICK ALIGN TYPE • BOLT SIZE: 7/8IN-9 X 12-1/2IN, GRADE 8, E20 TORX HEAD • USE WITH COLLARS MHS97 AND MHS99 • CONSISTS OF: 1-M5301, 2-MUBW184, 1-LNC106 • APPLICATIONS HENDRICKSON TRAILER BOLT TYPE BOLT KITS THREAD 9 BOLT DIA. 7/8" BOLT LENGTH (A) 12-3/8" PITCH N/A GRADE N/A KIT TYPE PIVOT BOLT KIT KIT (Y/N) YES

HK0004337

HD40010211

SLACK ADJUSTER - HALDEX TYPE SLACK ADJ 5.5IN ECONOMY AUTOMATIC, TRAILER AXLES WITH 16-1/2IN BRAKES, HALDEX TYPE 1-1/2IN-28 X 5-1/2IN ARM, 0 DEGREE INCLUDES 135.H0563 BRACKET KIT APPLICATIONS DANA/SPICER EATON MERITOR STANDARD FORGE SLACK TYPE AUTOMATIC-HALDEX TYPE (ECONOMY) SPLINE COUNT 28 SPLINE DIA. 1-1/2" ARM LENGTH (L1-L2) 5-1/2

HK0002736

133.3741

SLACK ADJUSTER - HALDEX TYPE SLACK ADJ 6IN ECONOMY • AUTOMATIC, FRUEHAUF TRAILER AXLES WITH 16-1/2IN BRAKES, HALDEX TYPE • 1-5/8IN-37 X 6.0IN ARM, 0 DEGREE • INCLUDES 135.H0563, BRACKET KIT APPLICATIONS FRUEHAUF SLACK TYPE AUTOMATIC-HALDEX TYPE (ECONOMY) SPLINE COUNT 37 SPLINE DIA. 1-5/8" ARM LENGTH (L1-L2) 6"

HK0002735

133.1031

SLACK ADJUSTER - HALDEX TYPE SLACK ADJ 5.5-6.5IN ECONOMY AUTOMATIC, DRIVE AXLES, HALDEX TYPE • 1-1/2IN-10 X 5-1/2IN AND 6-1/2IN ARM, 34 DEGREE • INCLUDES 135.H0553 BRACKET KIT APPLICATIONS EATON MERITOR SLACK TYPE AUTOMATIC-HALDEX TYPE (ECONOMY) SPLINE COUNT 10 SPLINE DIA. 1-1/2" ARM LENGTH (L1-L2) 5-1/2"-6-1/2"

HK0001034

139.2833

SLACK ADJUSTER , AUTOMATIC, TYPE B, MERITOR TYPE 1-1/2IN-28 X 5-1/2IN ARM, 5/8IN-18 CLEVIS, UNIVERSAL

HK0001166

HK1T-104

WASHER 1" SAE

HK0001032

MHSK450

AIR BAG MOUTING KIT HENDRICKSON • USE WITH 1-1/8IN AIRBAG SPACER MHS756 R

HK0000726

FCPS26321

BUSHING KIT QUICK ALIGN 1 PER SUSPENSION

HK0002982

137.1010

SLACK ADJUSTER, BENDIX TYPE SLACK ADJUSTER 5.5IN, 1-1/4IN-10 X 5-1/2IN ARM

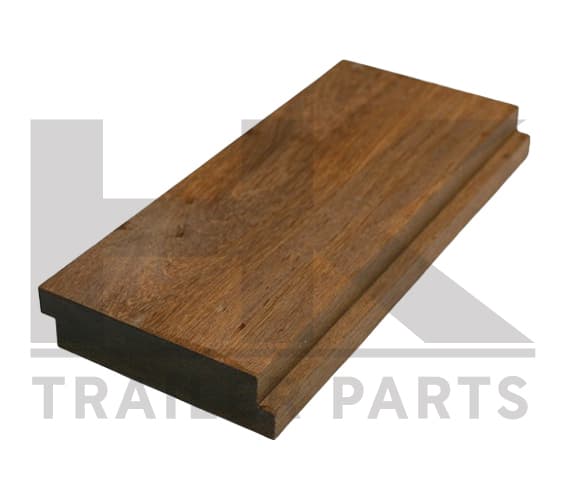

HK0003039

AP1.312X7X16

FLOOR WOOD FLATBED APITONG FLOORING CC=RED 16' 1-5/16"X7"X16' 1680' PER BUNDLE CC-RED

HK0002442

EE2126

MULTIVAN TOP RAIL / ROOF RAIL 374" FOR 1" BOW

HK0000693

01-6500-0-156

UTILITY REEFER RADIUS CORNER RADIUS POST UTILITY 1-6500-156 EXTRUDED ALUM REFFER W/ TABS

HK0003005

138.1010

SLACK ADJUSTER,AUTOMATIC, GUNITE TYPE, 1-1/4IN -10 X 5-1/2IN ARM W/ STRAIGHT CLEVIS

HK0001238

2307-10000

WASHER 1 IN BOLTALLOY FLAT WASHERS Z/Y

HK0001033

135.S2840

SLACK ADJUSTER , AUTOMATIC, TRAILER AXLES WITH 16-1/2IN BRAKES, HALDEX SELF-SETTING TYPE 1-1/2IN-28 X 5-1/2IN ARM

HK0003008

138.2832

SLACK ADJUSTER,AUTOMATIC, GUNITE TYPE, 1-1/2IN-28 X 6.0IN ARM

HK0001645

OPF700

FLATBED FLOOR WOOD FLOORING APITONG 1-5/16X7-3/8

HK0001792

HCI80500150

BOLT 1/2-13 X 1 1/2 HHCS GR8 FT

HK0001603

CP180134

COTTER PIN 1/8 X 1-3/4

HK0003241

10083396

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE , TAPPER SPINDLE,, 10 STUD, APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS, LONG STUD FLANGE OFFSET 1-51/64 IN (2.03 CM) HUB RATING (LB) 11500 LBS (5228 KG) INNER BEARING CUP NUMBER 431 OUTER BEARING CUP NUMBER 427 STUD LENGTH 3-7/16 IN (8.74 CM) WHEEL STUD BOLT CIRCLE DIAMETER 11-1/4 IN (28.58 CM) WHEEL STUD THREAD SIZE M22 X 1.5 MM

HK0000609

LED1040-4AP

TRAILER LIGHTS, LED 1" x 4" MAKER LAMP AMBER 4-DIO

HK0000434

138.2810

SLACK ADJUSTER, AUTOMATIC, GUNITE TYPE, 1-1/2IN -28 X 5-1/2IN ARM

HK0001835

HCI80370100

BOLT 3/8-16 X 1 HHCS GR8 FT
