PARTS CATALOG

HK0003876

MHS5705

DOWEL PIN HENDRICKSON 1/2" DIA. x 4.0"

HK0000267

GR4000

OPEN BACK GROMMET FOR 4" ROUND LAMPS

HK0003118

180.10629

HUB CAP, W/O SIDE FILL PLUG, 6 HOLES, 5.5" HOLE HEIGHT :_ 2.68"

HK0003565

TRB6004

TORQUE ROD BUSHING REYCO

HK0004096

M83381

SPRING BOGGIE LOCK PIN SPRING COMPRESSION SPRING REYCO

HK0003385

139.2836

SLACK ADJUSTER, MERITOR TYPE SLACK ADJUSTER 6IN, SLACK TYPE AUTOMATIC-MERITOR TYPE, SPLINE COUNT 28, SPLINE DIA. 1-1/2", ARM LENGTH 6"

HK0002559

577.A4410350010

ABS SENSOR KIT

HK0004705

172.4750

AIR TANK FREIGHTLINER 54.6x9x9

HK0002927

133.1042

SLACK ADJUSTER -HALDEX TYPE SLACK ADJ 6IN ECONOMY • AUTOMATIC, TRAILER AXLES WITH 12-1/4IN BRAKES, HALDEX TYPE • 1-1/2IN-10 X 6.0IN ARM, 35 DEGREE • INCLUDES 135.H0563 BRACKET KIT APPLICATIONS DANA/SPICER EATON MERITOR STANDARD FORGE SLACK TYPE AUTOMATIC-HALDEX TYPE (ECONOMY) SPLINE COUNT 10 SPLINE DIA. 1-1/2" ARM LENGTH (L1-L2) 6"

HK0003112

S-20475-2

SPINDLE NUT KIT,HENDRICKSON INTRAAX HP 3 PIECE NUT

HK0003539

563.9135

CONVEX MIRROR W/BRACKET 8.5" OFFSET PLASTIC BALL STUD OFFSET MOUNT INCLUDES L-BRACKET

HK0002047

172.5924A

AIR TANK, ALUMINUM VOLVO • VN, VNL • ALUMINUM • FOR STEEL, USE 172.5259 APPLICATIONS VOLVO TRAILER / TRUCK TRUCK DIAMETER (IN) 10.250" MAKE VOLVO CHAMBERS SINGLE LENGTH 29.500" TANK MATERIAL ALUMINUM BRACKETS TOP END PORTS (A) (3) M22X1.5, (2) M16X1.5, (1) M12X1.5 TANK END PORTS (B) (1) M12X1.5

HK0003091

572.1044

FUEL CAP 2IN-11-1/2 NPSH NON-VENTED, NON-LOCKING, THERMAL RELIEF

HK0004167

170.65125

R-12 RELAY VALVE, DELIVERY: 1/2" , SUPPLY: 1/2" (X2), CON 1/4" , 5.5 PSI CRACK PRESURE, HORIZONTAL.

HK0004425

571.PT108

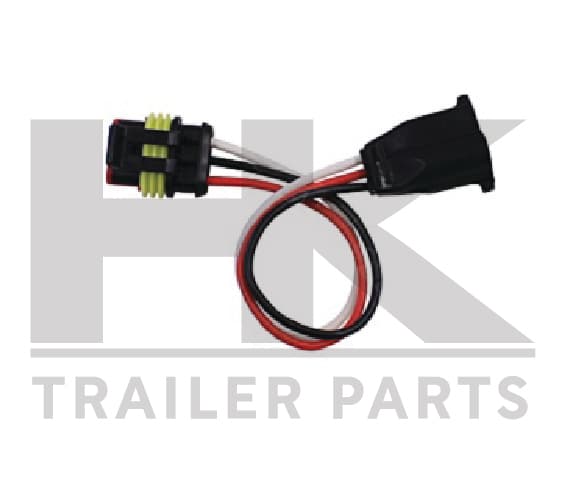

ELECTRICALS, PIGTAIL ADAPTER 2 WIRE

HK0001003

179.5010

BRAKE CHAMBER MOUNT BRACKET

HK0004259

177.71402T

HOSE REPAIR KIT , 3/8" ID X 3/8" NPT

HK0000400

15-762

SOCKET ZINC DIE-CAST, 7 PIN, EXT. BARREL, WITH 20

HK0001518

577.46605

COOLANT LEVEL SENSOR OLD FREIGHTLINER

HK0003395

B-22000

LOCK PIN, SPRING,HENDRICKSON/TURNER, 3-1/4IN SPRING

HK0002921

AB1DK23I-8803

AIR BAG-AIR SPRING ROLLING LOBE • 5-5/8 INCH PISTON HGT. • PLASTIC BASE APPLICATIONS RIDEWELL SAF HOLLAND/NEWAY TYPE ROLLING LOBE AIRSPRING BRAND AUTOMANN PHOENIX AUTOMANN BELLOWS # 1DK23I FIRESTONE BELLOWS# 1T15M-4 CONTITECH BELLOWS# 9 10-13.5 LOAD (LBS) @80 PSI 5600 LOAD (LBS) @100 PSI 7100 NATURAL FREQ. (CPM) 74 DESIGN HEIGHT (IN) 11.50 BOTTOM PLATE TYPE PLASTIC TOP PLATE HOLE/STUD QTY 2 TOP PLATE DIA. (A) 9.00 TOP PLATE C TO C DIA. (B) 5.50 BOTTOM PLATE HOLE/STUD QTY 1 BOTTOM PLATE DIA. (C) 10.28 BOTTOM PLATE C TO C DIA. (D) N/A BOTTOM PART # BS14552 BUMPER YES BRACKET N/A MIN. HEIGHT 7.30

HK0004126

802.90323

OIL PAN CUMMINS ISB 6.7L, STEEL, SUMP LOCATION-FRONT/REAR, VOL. QT.-15, USES M99323, 31.500? L × 12.875? / 11.750? / 8.562? (REAR WIDTHS) × 8.562? / 3.562? (FRONT WIDTHS) × Ø0.420? HOLES

HK0002910

172.2008

AIR TANK, 2735 CUBIC IN VOL 12.000IN DIA VOLUME: 2,735 CUBIC INCHES APPLICATIONS UNIVERSAL TRAILER / TRUCK TRAILER DIAMETER (IN) 12.000" VOLUME (CUBIC INCHES) 2735 MOUNTING LENGTH 29.500" BRACKET ORIENTATION TYPE 3 FRONT PORT (F2) 3/4" NPT BACK PORT (B1) 3/4" NPT DRAIN PORT (D) 1/4" NPT END PORTS (E) (2) 3/8" NPT

HK0001651

135.1041

SLACK ADJUSTER - , AUTOMATIC, TRAILER AXLES WITH 16-1/2IN BRAKES, HALDEX TYPE 1-1/2IN -10 X 6.0IN ARM, 0 DEGREE
