PARTS CATALOG

HK0003162

10082448

WHEEL HUB, ALUMINUM, PRESET, TN TRAILER -TAPERED SPINDLE MOUNTING HUB PILOTED - 8 STUDS ABS YES ABS CHARACTERISTIC STAMPED ABS RING WHEEL STUD BOLT CIRCLE DIAMETER 275 MM WHEEL STUD 102190 WHEEL STUD STANDOUT 3.80" HUB RATING 5,216 KG HUB CAP BOLT CIRCLE DIAMETER 5.500" DRUM PILOT DIAMETER 9.00" BEARING SET _-STAND PREMIUMCX ABS OFFSET 2.34" HUB OFFSET 0.34" CAN USE FOR 10082446 FOR BOTH STEEL AND ALUMINUM WHEEL

HK0002226

10085

SAF-T-LOCK STEEL ROUND E-TRACK LOGISTIC BAR

HK0001591

568.1004

LANDING GEAR HANDLE

HK0001238

2307-10000

WASHER 1 IN BOLTALLOY FLAT WASHERS Z/Y

HK0001931

201.1004L

INNER CAP NUT

HK0003180

10001198

HUBS, WHEEL HUB, TRAILER, PARELLEL SPINDLE (HP ), FOR BOTH ALUMINUM AND STEEL WHEELS, ABS YES, CM105459 BODY TYPE ALUMINUM OVERALL HEIGHT 8.150 DISTANCE BETWEEN CUPS 4.500 BOLT CIRCLE DIA. 11.250 PILOT 8.780" BOLT HOLES 10 INCLUDES WHEEL STUDS E-10221 RECOMMENDED WHEEL STUDS HUBCAP HOLES 6 @ 5/16-18 HUBCAP BOLT CIRCLE DIA. 6.750" BEARING CUP: HM518410

HK0001299

573.1000

ALUMINUM MANIFESTR BOX

HK0003975

572.1048

FUEL CAP LOCKING 3"-8UN NON-VENTED FOR MAC AND VOLVO

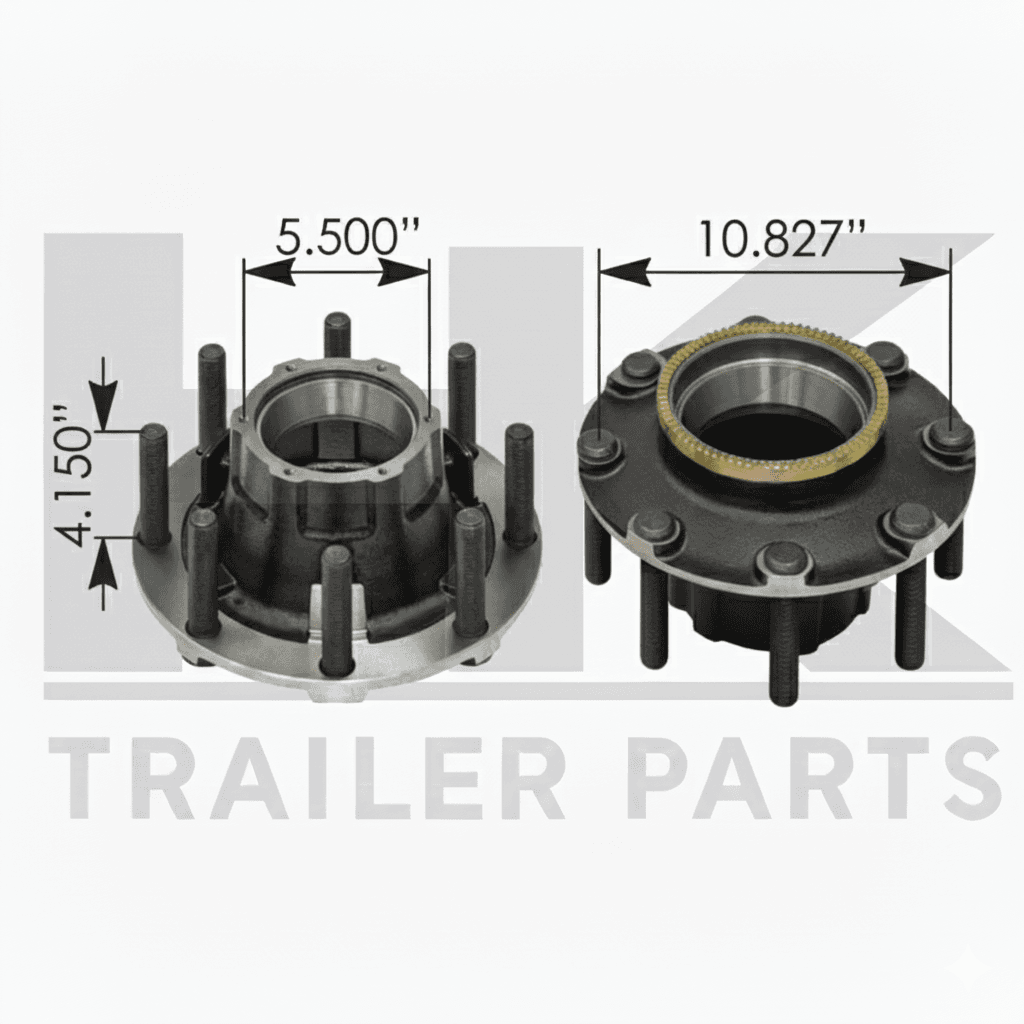

HK0003233

10-00048-101

HUBS, WHEEL HUB, TRAILER, TAPPER SPINDLE, FOR LOWBOY TRAILERS, 8 STUDS, APPLICATION TYPE :- FOR BOTH ALUMINUM AND STEEL WHEELS WHEEL STUD :- R006034 OUTER RACE HM212011 (412 BEARING ) INNER RACE HM218210 ( 414 BEARING )

HK0003991

568.1004H

HK0003181

10001190

HUBS, WHEEL HUB, TRAILER, STRAIGHT SPINDLE, FOR STEEL WHEELS, HUB MOUNTING SYSTEM HP10 WHEEL STUD STANDOUT (IN.) 2.94 FLANGE OFFSET (IN.) 1.42 BRAKE DRUM PILOT (IN.) 8.78 ABS TONE RING INCLUDED YES WEIGHT (LBS.) 37.0 WHEEL STUDS: 102290 (M22 X 4.47") (M3659) BEARING CUP: HM518410

HK0003182

10001192

HUBS, WHEEL HUB, TRAILER, STRAIGHT SPINDLE, FOR BOTH ALUMINUM AND STEEL WHEELS WHEEL MATERIAL ALUMINUM WHEELS FLANGE OFFSET (IN.) 1.42 BRAKE DRUM PILOT (IN.) 8.78 ABS TONE RING INCLUDED YES BEARING NUMBER HM518410 BRAKE TYPE DRUM HUB MOUNTING SYSTEM HP10 WHEEL STUD BOLT CIRCLE DIAMETER 11.25 IN WHEEL STUD STANDOUT 3.81 IN WHEEL STUD 102292

HK0003179

10001196

HUBS, WHEEL HUB, TRAILER ,STRAIGHT SPINDLE (HP), TYPE :- STEEL WHEELS ( SHORT STUD) HUB ASSY BOXED TP TR HP10 ABS, SHORT STUD, TONE RING HM518410 BEARINGS WHEEL STUDS: 102290 BOLT CIRCLE DIAMETER: -11-1/4" WHEEL MATERIAL STEEL WHEELS FLANGE OFFSET (IN.) 1.42 BRAKE DRUM PILOT (IN.) 8.78 WEIGHT (LBS.) 37.0 CAN USE 10001198 AS ALTERNATIVE

HK0001101

179.1004

Gladhand Bracket Mount Service 3/8in Female Pipe, Color: Blue

HK0001949

10045883

WHEEL SEAL, WHEEL SEAL / HUBH SEAL AXLE FL WEIGHT 0.87 PG APPLICATION STEER AXLE HOUSING BORE DIAMETER 18.61 IN SEAL OUTER DIAMETER 5.92 IN SHAFT DIAMETER / SEAL INNER DIAMETER 4.35 IN SEAL WIDTH 0.64 IN NOTES FL STEER SPINDLE TYPE

HK0002649

10045885

WHEEL SEAL, FREIGHTLINER, INTERNATIONAL, KENWORTH, MERITOR, PETERBILT, VOLVO
