PARTS CATALOG

HK0003705

568.1057

LANDING GEAR BRACE FLATBAR, FOR INSIDE K-BRACKET, COMMON FOR ALL BRANDS

HK0001591

568.1004

LANDING GEAR HANDLE

HK0004615

568.1070

LANDING GEAR AND ACCESSORIES, LANDING GEAR CROSS SHAFT

HK0003312

568.1018HD

LANDING GEAR SAND SHOE AXLE, HD

HK0002473

568.1023

LANDING GEAR SET OUTSIDE MOUNT 19IN (JOST STYLE) 50K OUTBOARD EXTENDED 52.62IN, COLLAPSED 33.62IN

HK0001560

568.1005

LANDING GEAR HANDLE 15.50IN

HK0000892

502 1057

MANAC CORNER CAP (NEW STYLE)

HK0000989

568.1051K

CUSHION FOOT KIT , JOST STYLE

HK0004433

568.1017X

LANDING GEAR SET 17IN STAND SHOES

HK0000990

568.1064K

CUSHION FOOT PAD ASSM HOLLAND

HK0003706

568.1531SHD

ADJUSTABLE BRACE TUBE FOR LANDNG GEAR, SQUARE ENDS HOLLAND, HD 56" TO 72", INNER TUBE 2.0" OD X 0.188" THK, AND OUTER TUBE 2.0" SCHEDULE 40 PIPE

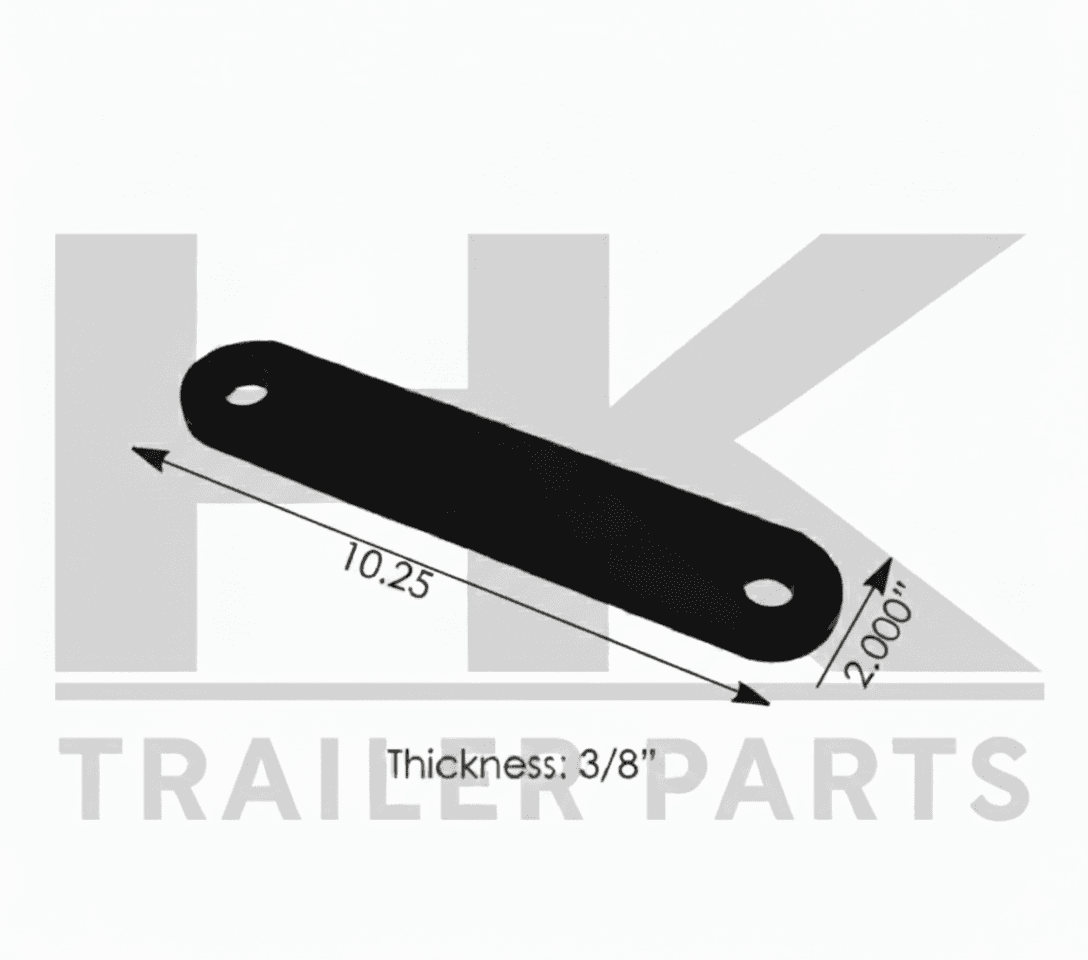

HK0003711

568.1042

LANDING GEAR FLAT BRACE, USED COMMONLY FOR JOST LANDING GEAR, WIDTH-2", TOTAL LENGTH-10.25", THICKNESS-3/8", 8.25" FROM HOLE CENTRE TO HOLE CENTRE,

HK0003707

568.1031

LANDING GEAR BRACE ADJUSTABLE, 56"-72" FROM HOLE CENTRE TO HOLE CENTRE

HK0003708

568.1035

LANDING GEAR CROSS SHAFT-ADJUSTABLE, SQUARE TUBE, EXTENDS FROM 29" TO 47"

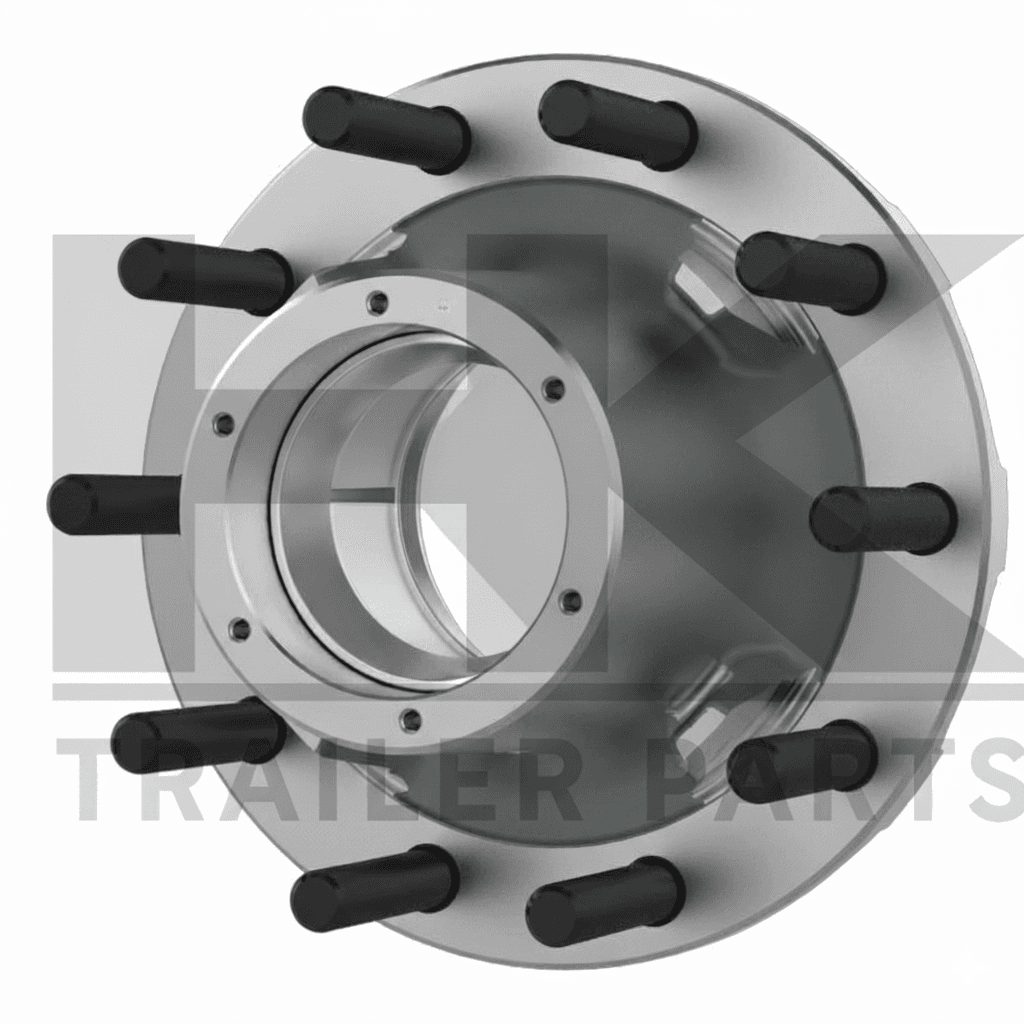

HK0003153

105776

HUBS, WHEEL HUB/TRAILER STUD: M22 X 1.5 MM X 4-51/64 IN INCLUDES INNER RACE:- HM218210 INCLUDES OUTER RACE:- HM212011 WHEEL STUD :- E-1021 BODY TYPE ALUMINUM OVERALL HEIGHT 8.030 DISTANCE BETWEEN CUPS 3.340 BOLT CIRCLE DIA. 11.250 PILOT 8.780" BOLT HOLES 10 HUBCAP HOLES 6 @ 5/16-18 HUBCAP BOLT CIRCLE DIA. 5.500"

HK0003991

568.1004H

HK0000987

568.1002

LANDING GEAR SAND SHOES STANDRAD

HK0001561

568.1033

CROSS SHAFT KIT ADJUSTABLE

HK0002136

568.1003HD

LANDING GEAR SAND SHOE LOW PROFILE HD

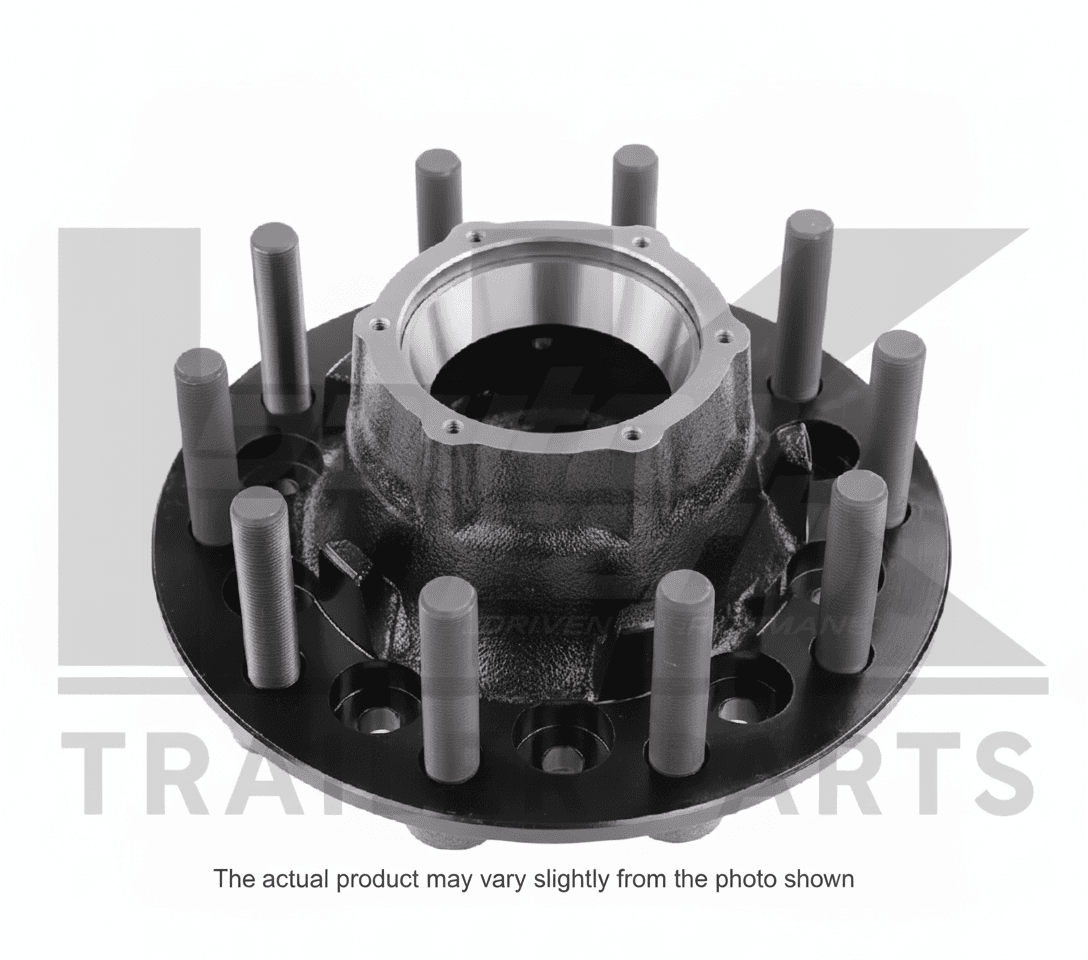

HK0003154

105769

HUBS, WHEEL HUB/TRAILER, HUB HENDRICKSON 8 HUB ABS RING MOUNT, CMET ALUMINUM WHEEL STUD STANDOUT (IN.) 3.80 WHEEL MATERIAL STEEL WHEELS FLANGE OFFSET (IN.) 0.34 BRAKE DRUM PILOT (IN.) 8.78 ABS TONE RING INCLUDED YES WEIGHT (LBS.) 34.4

HK0004184

568.1130

LANDING GEAR CROSS SHAFT, USED IN 568-1023 GEAR SET 68.4INCH OAL FOR OUTSIDE MOUNT, JOST

HK0002091

568.1024

LANDING GEAR SET INSIDE MOUNT 17IN

HK0000991

568.1028

JOST CUSHION FOOT PAD 10 IN X 10IN L/PROF, FOR JOSH STYLE LANDING GEAR

HK0000943

568.1022

LANDING GEAR SET, 19" TRAVEL, LOW SHOE 50K
