PARTS CATALOG

HK0002394

1014044

1" DOOR SEAL

HK0004093

1022300000040

DUST SHIELD SAF HOLLAND DISC BRAKE, C88, P89, NEWAY

HK0000683

10268

HALDEX CAM SHAFT

HK0000205

103-A

AIR FITTING- BRASS COUPLER; 1/8FPT

HK0001055

103-B

AIR FITTING- BRASS COUPLER, 1/4 FPT

HK0000206

103-C

AIR FITTING- BRASS COUPLER; 3/8FPT

HK0000207

103-D

AIR FITTING-BRASS COUPLER; 1/2FPT

HK0001834

1032-0881

WD-40 AEROSOL CAN

HK0002756

1039-0031

3 INCH PAINT BRUSH W/ PLASTIC HANDLE

HK0002772

1039-0032

2" PAINT BRUSH W/ WOODEN HANDLE

HK0002773

1039-0033

3" PAINT BRUSH W/ WOODEN HANDLE

HK0002663

1039113

LOCK ROD PIPE FOR REAR DOOR 1” X 120” GALV

HK0002886

1040-0026

3/4X .020X 43/48 KG STEEL STRAPPING (1900)FT

HK0000779

1043BK

RUBBER BUMPER 1043 - 6"L x 4"W x 3.25" HIGH TOP TAPERED 2.625" BOTTOM. 500" DIA MTG HOLES 2.5" CC EA

HK0003155

105760

HUBS, WHEEL HUB, TRAILER, DRUM BRAKE AND HUB ASSEMBLY - 9 IN. DRUM, TAPERED SPINDLE, ALUMINUM, 3.80 IN. STUD, WITH ABS TONE RING MOUNTING HUB PILOTED - 8 STUDS ABS YES WHEEL STUD BOLT CIRCLE DIAMETER 275 MM WHEEL STUD 102190 WHEEL STUD STANDOUT 3.80" HUB CAP BOLT CIRCLE DIAMETER 5.500" DRUM PILOT DIAMETER 9.00" CUP, BEARING - OUTBOARD 100015 CUP, BEARING - INBOARD. 100014 CAN USE FOR BOTH STEEL AND ALUMINUM WHEELS ALTERNATIVE FOR 105769

HK0003154

105769

HUBS, WHEEL HUB/TRAILER, HUB HENDRICKSON 8 HUB ABS RING MOUNT, CMET ALUMINUM WHEEL STUD STANDOUT (IN.) 3.80 WHEEL MATERIAL STEEL WHEELS FLANGE OFFSET (IN.) 0.34 BRAKE DRUM PILOT (IN.) 8.78 ABS TONE RING INCLUDED YES WEIGHT (LBS.) 34.4

HK0003153

105776

HUBS, WHEEL HUB/TRAILER STUD: M22 X 1.5 MM X 4-51/64 IN INCLUDES INNER RACE:- HM218210 INCLUDES OUTER RACE:- HM212011 WHEEL STUD :- E-1021 BODY TYPE ALUMINUM OVERALL HEIGHT 8.030 DISTANCE BETWEEN CUPS 3.340 BOLT CIRCLE DIA. 11.250 PILOT 8.780" BOLT HOLES 10 HUBCAP HOLES 6 @ 5/16-18 HUBCAP BOLT CIRCLE DIA. 5.500"

HK0003747

1059065

ROOF BOW TAPE, 1/8"X5/8", 2-SIDED, TOTAL LENGTH 65' PER ROLL

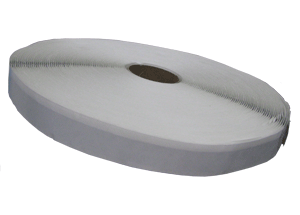

HK0004497

1059610

ROOF BOW TAPE, 1/8"X5/8", 2-SIDED, TOTAL LENGTH 100' PER ROLL

HK0002750

1060-0866

EYE BOLT 3/4 X 4-1/2 SHOULDER NUT EYE BOLT GALV. EYE BOLT FOR BUMPER

HK0002066

1060-1516

1/8 AIRCRAFT CABLE GAL 7X7 500FT/REEL ROLL UP DOOR CABLE

HK0001970

10620

1/4 HSS TAPER LENGTH USA 8207-50

HK0001973

10630

DRILL BIT 17/64 LONG, 210 HSS TAPER LENGTH USA 8207-50

HK0003183

106302

HUBS, WHEEL HUB, TRAILER, STRAIGHT SPINDLE, FOR STEEL WHEELS OUTBOARD MOUNT, HM212049 & HM218248 BEARINGS, FOR STEEL WHEELS WHEEL STUD: M3668 HUB CAP BOLT CIRCLE: 5.50" (6-HOLE) NO. OF WHEEL STUDS: 10 WHEEL STUD STANDOUT: 3-1/2" (FROM HUB FACE TO END OF STUD THREAD) WHEEL STUD BOLT CIRCLE: 11.25" DRUM PILOT DIAMETER: 8.78" SEAL BORE DIAMETER: 6.00" ABS READY: YES COMMON WITH 3600 BRAKE DRUM
