PARTS CATALOG

HK0003288

10016195

ROTOR, AIR DISC, FLAT,AIR DISC ROTOR 16.900IN BRAKE TYPE WABCO PAN22 ROTOR TYPE FLAT AOVERALL LENGTH 2.09 INCH BBRAKE SURFACE OUTSIDE DIAMETER Ø16.93 INCH CTHICKNESS 1.77 INCH DPILOT DIAMETER Ø 6.55 INCH E BOLT CIRCLE Ø7.86 INCH NUMBER OF BOLT HOLES 10

HK0001467

1001829230

ELECTRICAL CORD 50FT

HK0001949

10045883

WHEEL SEAL, WHEEL SEAL / HUBH SEAL AXLE FL WEIGHT 0.87 PG APPLICATION STEER AXLE HOUSING BORE DIAMETER 18.61 IN SEAL OUTER DIAMETER 5.92 IN SHAFT DIAMETER / SEAL INNER DIAMETER 4.35 IN SEAL WIDTH 0.64 IN NOTES FL STEER SPINDLE TYPE

HK0002649

10045885

WHEEL SEAL, FREIGHTLINER, INTERNATIONAL, KENWORTH, MERITOR, PETERBILT, VOLVO

HK0001243

10062522

BOTTOM RAIL, REEFER , HYUNDAI, E06-076 15815, 622.6"

HK0003195

10082438

HUBS, WHEEL HUB, DRUM BRAKES ALUM HUB PRESET TP ABS MATERIAL ALUMINUM AXLE POSITION TRAILER AXLE TP TRAILER - PARALLEL SPINDLE ASSEMBLY TYPE PRESET CASTING 10086449 BEARING SET (INBOARD) SET: 415 OR 432 BEARING SET (OUTBOARD) SET: 415 OR 432 COMPATIBLE BRAKE TYPE DRUM HUB MOUNTING SYSTEM HP10 WHEEL STUD STANDOUT (IN.) 3.81 WHEEL MATERIAL ALUMINUM WHEELS AND STEEL WHEELS FLANGE OFFSET (IN.) 1.42 BRAKE DRUM PILOT (IN.) 8.78 CAN USE AS A SUBSTITUDE FOR 10082436 OR 10082228

HK0003156

10082440

HUBS, WHEEL HUB, ALUMINUM, TRAILER, TAPERED SPINDLE, PRESET R DRIVE HUB, WITH LONG WHEEL STUDS HUB MOUNTING SYSTEM HP10 WHEEL STUD STANDOUT (IN.) 2.94 WHEEL MATERIAL STEEL WHEELS FLANGE OFFSET (IN.) 0.34 BRAKE DRUM PILOT (IN.) 8.78 PILOT DIAMETER 8.78 IN INNER BEARING CONE NUMBER 429 STUD LENGTH 3.96 IN

HK0003161

10082442

HUBS, WHEEL HUB, TRAILER, ALUMINUM PRESET, LONG STUD AXLE -TAPERED SPINDLE BEARING SET (INBOARD) :-SET: 414 OR 431 BEARING SET (OUTBOARD) :-SET: 413 OR 427 COMPATIBLE BRAKE TYPE DRUM HUB MOUNTING SYSTEM HP10 WHEEL STUD STANDOUT (IN.) 3.80 WHEEL MATERIAL ALUMINUM WHEELS FLANGE OFFSET (IN.) 0.34 BRAKE DRUM PILOT (IN.) 8.78 ABS TONE RING INCLUDED YES CAN USE FOR BOTH STEEL AND ALUMINUM WHEEL ALTERNATIVE USE FOR 10082440

HK0003162

10082448

WHEEL HUB, ALUMINUM, PRESET, TN TRAILER -TAPERED SPINDLE MOUNTING HUB PILOTED - 8 STUDS ABS YES ABS CHARACTERISTIC STAMPED ABS RING WHEEL STUD BOLT CIRCLE DIAMETER 275 MM WHEEL STUD 102190 WHEEL STUD STANDOUT 3.80" HUB RATING 5,216 KG HUB CAP BOLT CIRCLE DIAMETER 5.500" DRUM PILOT DIAMETER 9.00" BEARING SET _-STAND PREMIUMCX ABS OFFSET 2.34" HUB OFFSET 0.34" CAN USE FOR 10082446 FOR BOTH STEEL AND ALUMINUM WHEEL

HK0003240

10082497

HUBS, WHEEL HUB, TRAILER , DISC BRAKE TYPE,TAPPER SPINDLE 10 STUD, PRESET, ABS, BENDIX ADB22X-LT, APPLICATION TYPE :- STEEL WHEELS BEARING NUMBER INBOARD - 246 431 BEARING NUMBER OUTBOARD - 245 427 FLANGE OFFSET 0.79 IN HUB MOUNTING SYSTEM HP10 HUB RATING 11500 PG LEAD TIME 5 DAYS MATERIAL ALUMINUM WEIGHT 118.0 PG WHEEL STUD BOLT CIRCLE DIAMETER 11.25 IN WHEEL STUD STANDOUT 2.56 IN WHEEL STUD THREAD M22 X 1.5 MM MM

HK0003241

10083396

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE , TAPPER SPINDLE,, 10 STUD, APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS, LONG STUD FLANGE OFFSET 1-51/64 IN (2.03 CM) HUB RATING (LB) 11500 LBS (5228 KG) INNER BEARING CUP NUMBER 431 OUTER BEARING CUP NUMBER 427 STUD LENGTH 3-7/16 IN (8.74 CM) WHEEL STUD BOLT CIRCLE DIAMETER 11-1/4 IN (28.58 CM) WHEEL STUD THREAD SIZE M22 X 1.5 MM

HK0004700

10083507

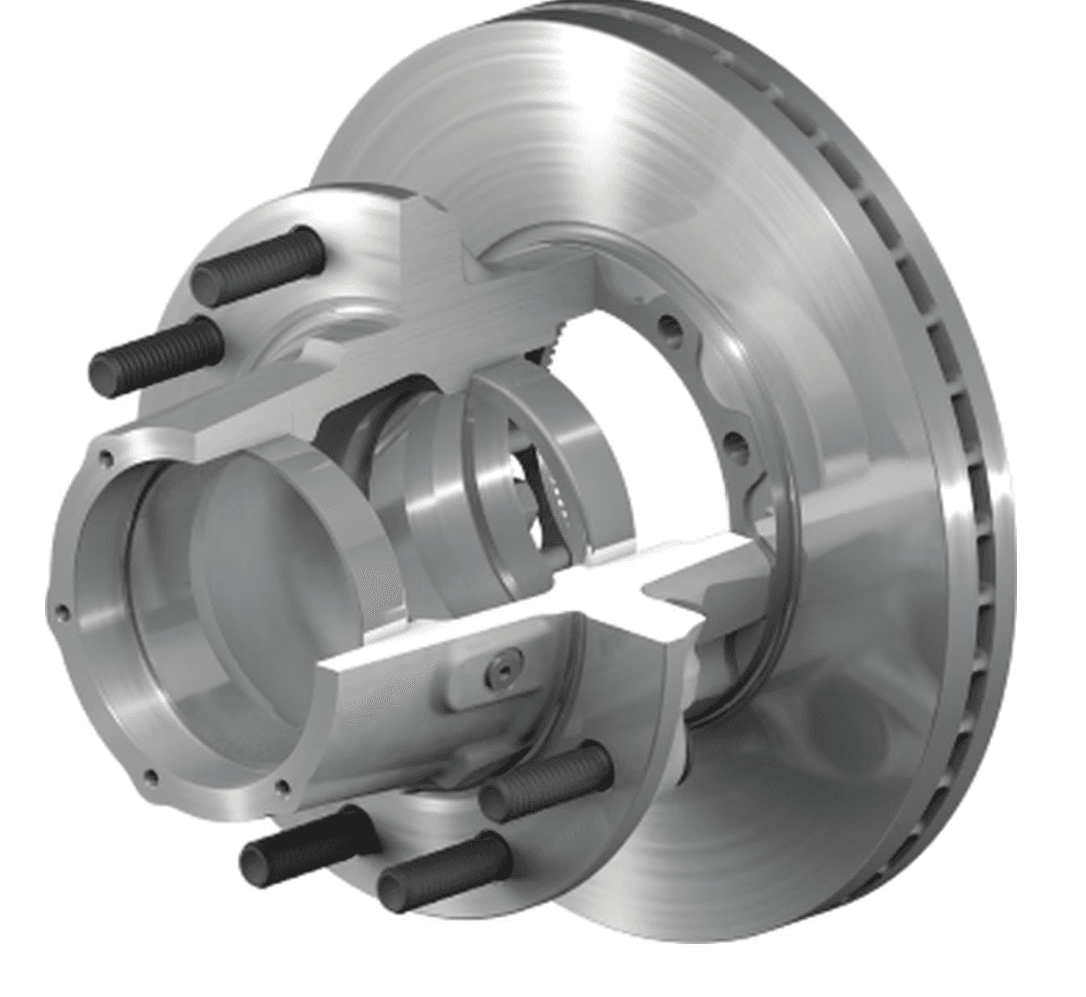

HUB, HUB AND ROTOR ASSEMBLY, TRAILER, TP SPINDLE (PARALLEL SPINDLE )DISC BRAKE 10083508 IS THE SHORT STUD VERSON OF THIS

HK0003280

10083516

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, PARALLEL SPINDLE, 10 STUD X 11.25" BRAKE TYPE :- BENDIX ADB22X-LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS Drum/rotor pilot 8.66 in Hubcap Holes 5/16-18 in Hubcap Mount (6) on 6.75 in Inner Breaing HM518445 Inner Race HM518410 Inner Set SET415 OE Ref Number S-28534-1 Outer Bearing HM518445 Outer Race HM518410 Outer Set SET415 Overall Height 8.89 in Wheel Mount (10) on 11.25 in Wheel Offset 1.79 in Wheel Seal WS880065 Wheel Stud 13-1572

HK0002226

10085

SAF-T-LOCK STEEL ROUND E-TRACK LOGISTIC BAR

HK0002175

100FL-AR60H

FLOWMETER ARGON C/W HOSE

HK0001880

101-24109

FREIGHTLINER ALTERNATOR 24SI

HK0001879

101-28100

ALTERNATOR 28SI

HK0001878

101-36103

FREIGHTLINER ALTERNATOR 36SI

HK0002113

101-40121

ALT 12V 240A IR/EF

HK0004223

1011235

CROSS SHAFT LANDING GEAR JOST 68”

HK0001053

1013863

DOOR SEAL, 3/4" SEALOK, 15/BOX, 14FT

HK0000727

1013865

1/2" DOOR SEAL FOR COMPOSITE DOOR: DOOR SEAL VINYL FOR 1/2" DOOR 14' 30/CARTON

HK0004476

1013882

DOOR PANEL, COMPOSITE

HK0003272

1013892

COMPOSITE DOOR PANEL .512X49"X109"
